Also available in the following specialty
- VPI / VFD Suitable
- Double Shaft Extension
- T.B Location: LHS / TOP
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
Features / Specification
( AS PER IEC:60034-1 )
| KW / HP | 1.1 To 116 KW / (0.5 To 156 HP) |
|---|---|
| RPM / Pole | 1000 RPM (6 Pole) 750 RPM (8 Pole) 600 RPM (10 Pole) |
| Frame Size | 112 To 315 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Standard | IE1 |
| Ambient Temperature | 50 °C |
| Body Enclosure | Cast Iron |
| Duty | S3 / S4 / S5 Intermittent |
| CDF | 25 / 40/ 60 |
| Starts/hr | 60 / 150 / 300 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor |
| Terminal Box Location | RHS |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Description

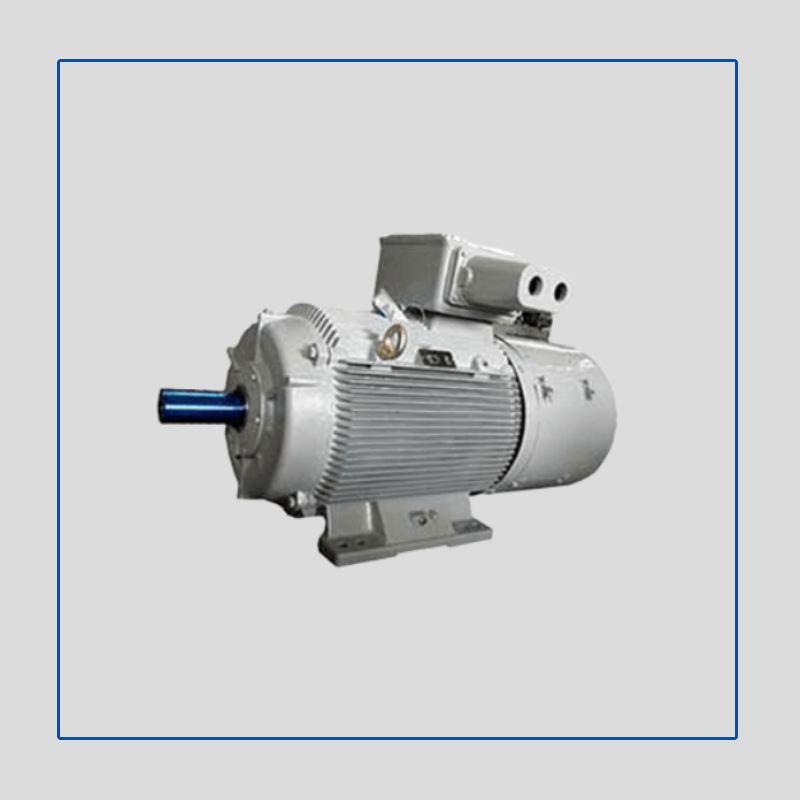

We (We Tech Solutions) are the Authorised Dealer of CG Power (Crompton Greaves) Crane Duty Slipring Motors having range from 1.1 KW to 116 KW & 0.5 HP to 156 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton Crane Duty Slipring motors are available in 1000 RPM, 750 RPM & 600 RPM with respect to and 6 Pole, 8 Pole & 10 Pole with cast iron body. This motors are compatible with S4, S3 & S5 duty with CDF 25 / 40 / 60 & 60 / 150 / 300 Starts per hour. Available Frame sizes are from 63 to 255 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Crompton Crane Duty Slipring motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI / VFD Suitable, Double Shaft Extension, T.B Location: LHS / TOP.
Application
Cranes & Hoists, Other Material Handling Equipment's, Weirs & Sluices, All types of Lifts, Rolling Mills.
