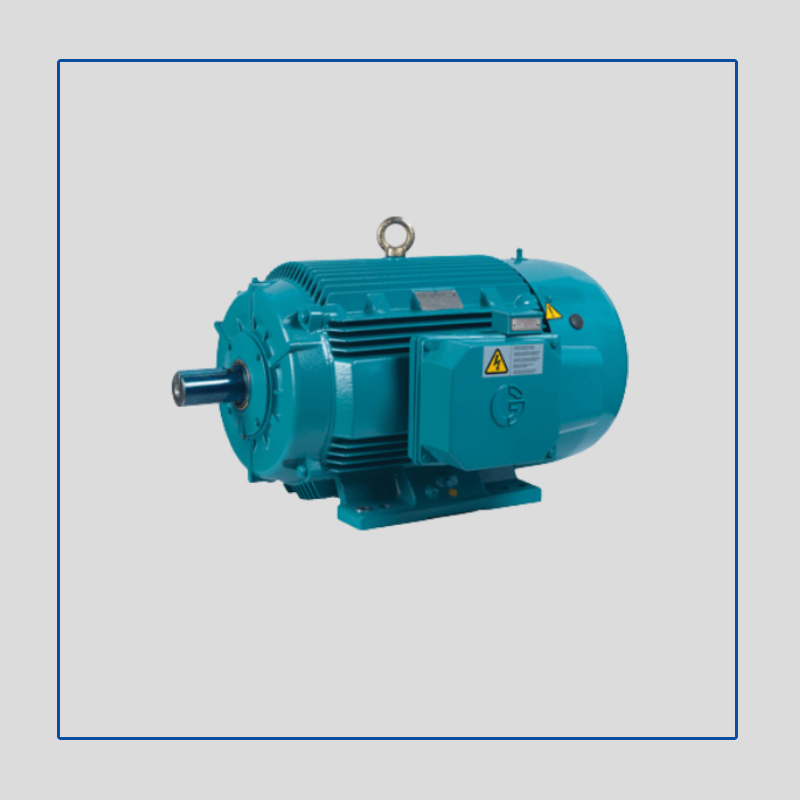

Crompton Greaves IE3 Motors speciality
- VPI / VFD Suitable
- T.B Location: RHS / TOP
- Insulated Bearings
- Roller Bearings
- Space Heaters
- Force Cooling
- Thermisters
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
Features / Specification
( AS PER IS:12615 / IEC:60034-1 )
| KW / HP | 0.37 To 375 KW / (0.5 To 500 HP) |
|---|---|
| RPM / Pole | 3000 RPM (2 Pole) 1500 RPM (4 Pole) 1000 RPM (6 Pole) 750 RPM (8 Pole) |
| Frame Size | 80 To 355 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted B14 Face Mounted |
| Standard | IE3 |
| Ambient Temperature | 50 °C |
| Body Enclosure | Cast Iron (Full Range) & Aluminium( 80 To 132 Frames Only ) |
| Duty | S1 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor |
| Terminal Box Location | RHS |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Description
We Tech Solutions are the Authorised Dealer of Crompton Greaves IE3 Motors having range from 0.37 KW to 375 KW & 0.5 HP to 500 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton IE3 motors available in 3000 RPM, 1500 RPM, 1000 RPM & 750 RPM with respect to 2 Pole, 4 Pole and 6 Pole & 8 Pole with cast iron body (Full Range) & Aluminium body ( 80 To 132 Frames Only) with S1 duty. Available Frame sizes are from 80 to 355 frame. Mounting options are B3 (Foot Mounting), B5 (Flange Mounting), B35 (Foot cum Flange Mounting), B14 (Face Mounting) available with Terminal Box Position at RHS Side. IE3 motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Crompton Greaves IE3 Motors are 20 °C to + 50° C.
Application
Pump, Fan, Compressor, Paper Machinery, Dairy Equipment, Hydraulic press, HVAC, Grinding Machine, Vertical Boring, Milk Pumps, Chilling Plants, Blenders, Pulverize, Condensers, Agitators, Air Compressors, Centrifuges, ID & FD Fans, Cooling Tower, Cold Storages, Plastic Machinery, Machine Tool, Air Conditioning, Textiles Machinery.
